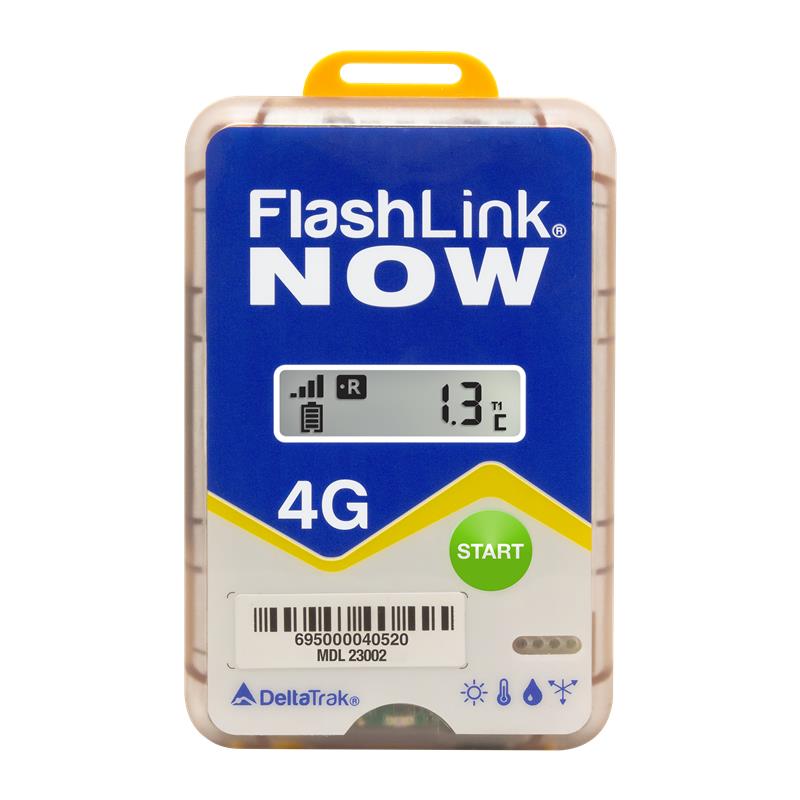

FlashLink NOW 4G Real-Time In-Transit Logger
Model: 23002
MEASUREMENT RANGE
FEATURES
- Equipped with global network compatibility, Location Based Services (LBS), and precision accuracy through Wi-Fi triangulation positioning for reliable real-time monitoring
- Monitors in-transit real-time location, temperature, humidity, shock, and light exposure
- Our Cloud Service platforms offer different levels of access to optimize user experience and API integration into customer systems
- Easily toggle between °F and °C on the LCD display upon activation
- Customizable trip durations for 12, 30, 70, 90, 120 days
APPLICATIONS
Real-time monitoring of export shipments, trip duration up to 70 days
The FlashLink® NOW 4G Real-Time In-Transit Logger leverages the latest technology to safeguard temperature-sensitive products during domestic and export shipments. Equipped with global 4G network compatibility, Location-Based Services (LBS), and precision accuracy through Wi-Fi triangulation positioning. Delivering real-time monitoring when it matters most, this device captures location, temperature, humidity, shock, and light empowering shippers and receivers to take immediate action in the event of a temperature excursion or potential security breach.
| FEATURE | SPECIFICATIONS |
|---|---|
| Temperature Range | -30°C to 60°C (-22°F to 140°F) |
| Temperature Accuracy | ±0.5°C from -20°C to 40°C (±0.9°F from -4°F to 104°F), ±1.0°C (2.0°F) Other |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor (NIST traceable) |
| Temperature Scale | Dual-scale °F/°C (Default °C) |
| Humidity Range | 5% to 95% RH |
| Humidity Accuracy | ±3% from 20% to 80%RH ±5% for other |
| Light Detector | On / Off, triggers at 15 Lux |
| Shock Sensor | 4g, height 5cm to 10 cm (Factory Customizable options up to 16g) |
| Usage Type | Single Use |
| Data Capacity | Max 27000 readings |
| Logging Interval | 10 Min. |
| Data Upload Interval | 90 Min. |
| Trip Duration | 70 Days |
| Communication | Global LTE Cat-1 4G/5G network, with 2G Fallback |
| SIM | Internal Embedded (Global Data Roaming) Nano Sim |
| Power Source | Non-Lithium Ni-MH |
| Battery Shelf Life | 1 Year |
| Logger Dimensions | 4.2in [with loop: 4.5in] x 2.7in x 0.9in (106.4mm [with loop: 113.8mm] x 68.6mm x 22.3mm) |
| Waterproof Rating | IP54 |
| Certification | FCC, CE, RoHS, NIST traceable temperature accuracy |
| PDF Report Backup | USB-C to USB cable to download full trip PDF report |

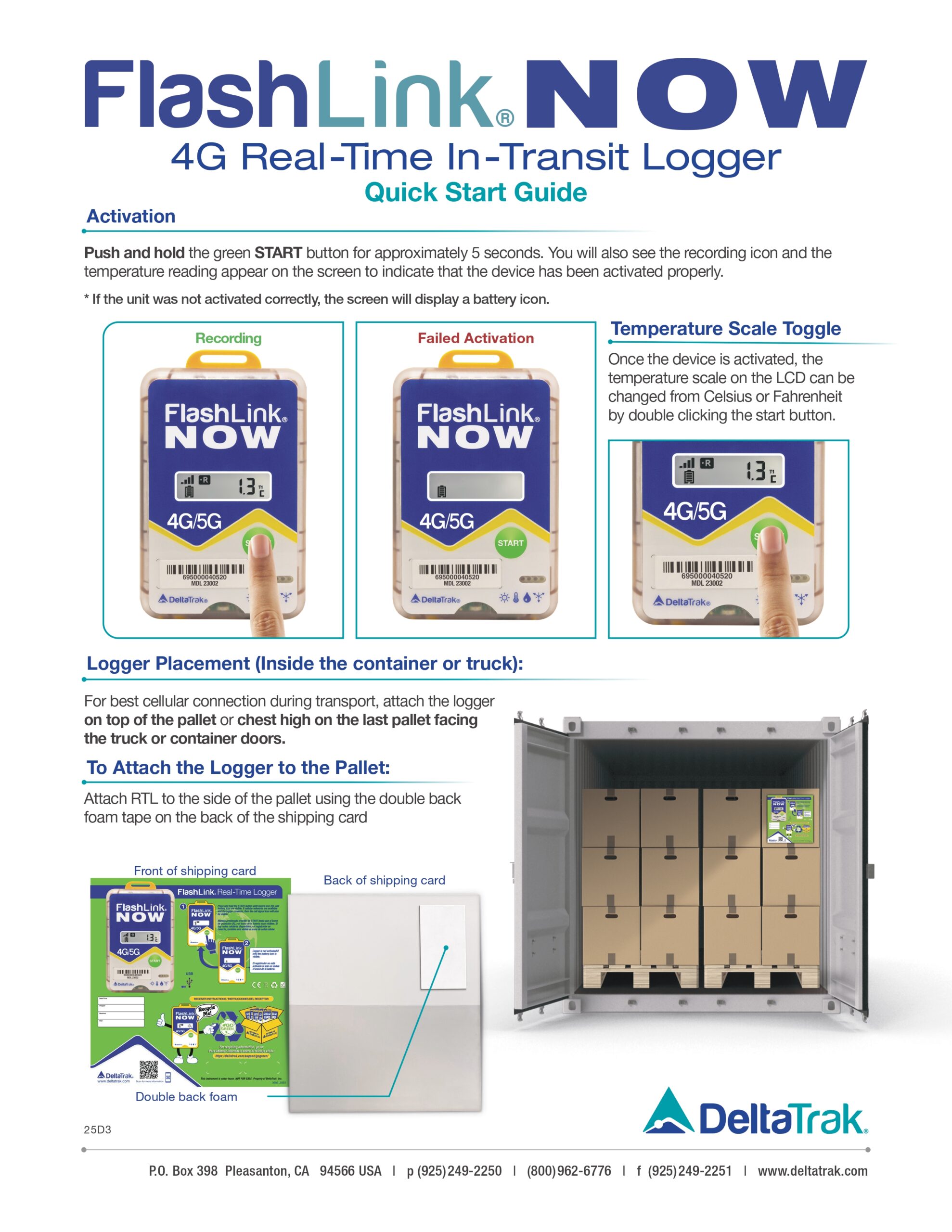

Each FlashLink® NOW 4G Real-Time In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver simple 2-steps instructions in English and Spanish.
Users can scan the QR code to quickly access more product information online.
FlashTrak
FlashTrak is a leading real-time cloud service for Supply Chain visibility, built on modern technology that transforms your supply chain management. Access data anywhere in the world with our dedicated FlashTrak Web Portal to download, print or share actionable data in real time.
