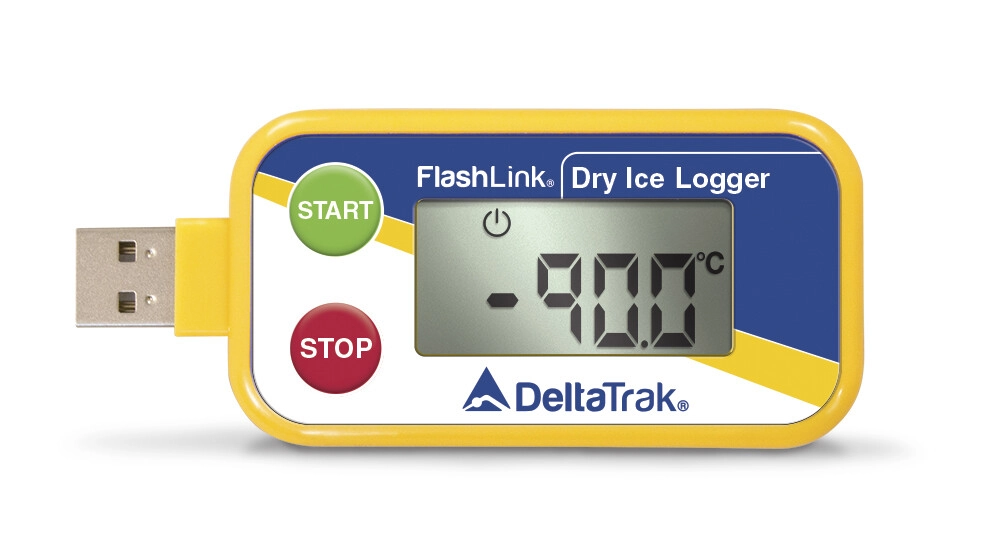

FlashLink® Dry Ice -90°C USB PDF In-Transit Logger
Model: 40801
FEATURES
- Ideal for storage and transport with dry ice
- Compact, single-use in-transit temperature logger
- Onboard software automatically creates a PDF report and CSV file
- Trip history statistics available on LCD
- Patented Shadow Log® feature guarantees data even if the operator fails to start the unit
- Direct USB connection, no cradle, reader or adapter needed
- Meets IATA Dangerous Goods Regulations
APPLICATIONS
Monitoring and recording of vaccines, biological materials, chemicals, or dry ice shipments
DeltaTrak’s FlashLink® Dry Ice -90°C USB PDF In-Transit Loggers was designed to provide continuous temperature monitoring in the coldest environments. This device is appropriate for temperature-sensitive commodities which require extremely low temperatures during shipping – such as those utilizing dry ice.
FlashLink® Dry Ice -90°C USB PDF In-Transit Loggers are ideal for tracking pharmaceutical shipments such as vaccines or other biological materials for the Life Science industry. The loggers provide a complete record of temperature conditions during shipping and handling, helping to ensure and verify the quality and safety of these costly products.
The on-board software and USB connector allow for quick download of trip history, available in PDF and CSV report formats. Receipt of temperature history is guaranteed with DeltaTrak’s failsafe Shadow Log™ feature. This patented, cutting-edge innovation records data even if the operator fails to start the unit.
FlashLink® Dry Ice -90°C USB PDF In-Transit Logger, Models 40800/40801
| Feature | Specification |
|---|---|
| Measurement Range | -130°F to 113°F (-90°C to 45°C) |
| Temperature Resolution | 0.1°F/°C |
| Accuracy | ±2.7°F from -130°F to -4°F (±1.5°C from -90°C to -20°C) ±0.9°F from -4°F to 77°F (±0.5°C from -20°C to 25°C) ±2.7°F from 77°F to 113°F (±1.5°C from 25°C to 45°C) |
| Data Capacity | 32,000 data points |
| Data Download Time | 5 seconds |
| Factory Programmable Alarm Levels | High/low limits over entire temperature range |
| Operating Life | 30-days with continuous exposure to dry ice at or below -80°C 5-days with continuous exposure at -90°C |
| Battery | One ½ AA, 3.6 volts |
| Dimensions | 1.57in x 3.67in x 0.94in (40mm x 93.5mm x 24mm) |
| Casing | ABS plastic |
| Weight | 1.9 oz (54 grams) |
| Shock Resistance | Withstands 3-foot (1 meter) drop to hard surface |
| Certification | Calibration traceable to NIST, ROHS Compliant, BSS 7061 Compliant, CE Mark |
| Display | LCD, RED LED Alarm |
| Storage Conditions | -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation |
| PDF Standards | Complies with ISO19005-1, PDF/A, 21 CFR Part 11 |
| System Requirements | Windows PC with current operating system, Adobe Reader |
| Download Requirements | Direct USB connection |
| Model | 40800 | 40801 |
|---|---|---|
| Temperature Scale | °F | °C |
| Sample Rate | 10 Minutes | 10 Minutes |

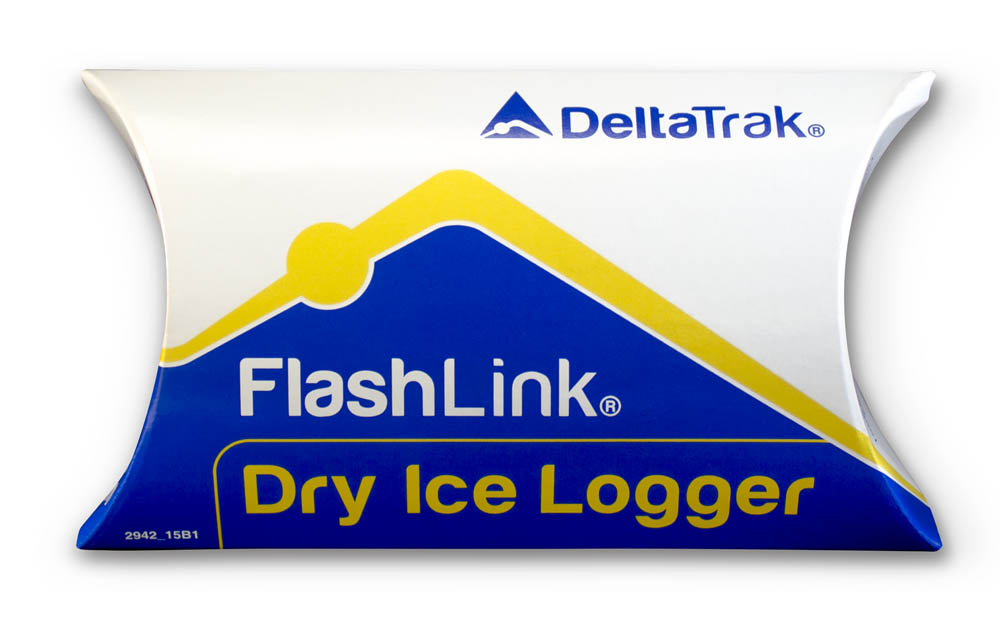

Packaging
The pillow style sleeve is designed to provide a cushion of air around the FlashLink® Dry Ice USB PDF Logger. This allows the unit to more closely reflect the temperatures that products experience during transport, by preventing direct contact between the logger and the dry ice.
The back of the sleeve contains shipper instructions in English and Spanish, and receiver instructions in English, Spanish, Chinese and Japanese. An image of the LCD identifies the icons that appear on the screen. Each end of the sleeve closes with two foldable flaps, securing the logger inside and making it easy to remove and download when a shipment arrives.
Download FlashLink Dry Ice -90°C USB PDF In-Transit Logger Spec Sheet
Download Shadow Log Technical Notes
Flyer: Single Use Temperature Monitors for COVID-19 Vaccine Transport and Handling
Flyer: Single Use Temperature Monitors for COVID-19 Vaccine Transport and Handling (Spanish)

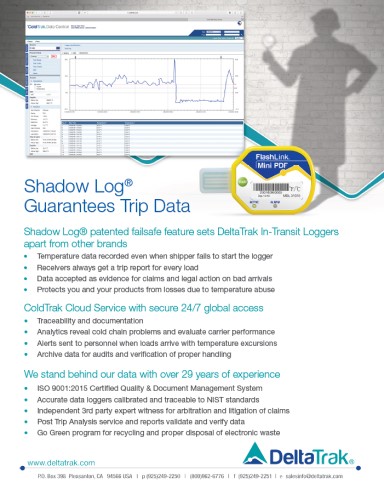

Download Shadow Log Flyer
